FOOT MASTER®

GAGD-150-ASF-HUD

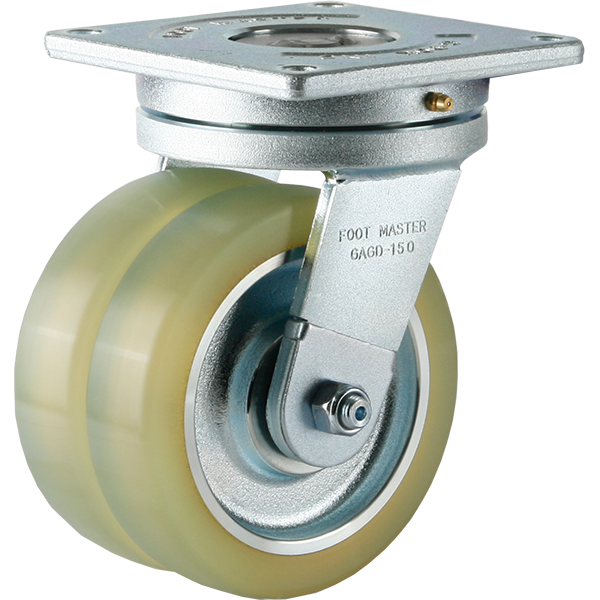

FOOT MASTER®AGV Caster GAGD
  • AGVs with high loads are difficult to change directions. When the AGV turns, it will turn around the wheels.
  • Therefore, when turning, the AGV casters will shake due to the size of the eccentricity. The higher the load, the more obvious the shaking phenomenon, so the AGV will deviate from the normal driving path. The GAGD series can withstand high loads. In order to prevent the AGV from suddenly stopping when turning, an excellent solution with a smaller eccentricity than ordinary casters is provided.
Specification
Dia. 150mm
Wheel Material PU(Shore A95)
Load Capacity 630kg
Surface Treatment Carbon steel/zinc plated
Width 40*2mm
Height 200mm
Eccentricity 35mm
Size of Plate 145*145mm
Plate Hole Centers 120*120mm
Plate Hole 11mm
Temperature -10~+90℃
FOOT MASTER®AGV Caster GAGD
