FOOT MASTER®

GAGD-100-ASF-HUD

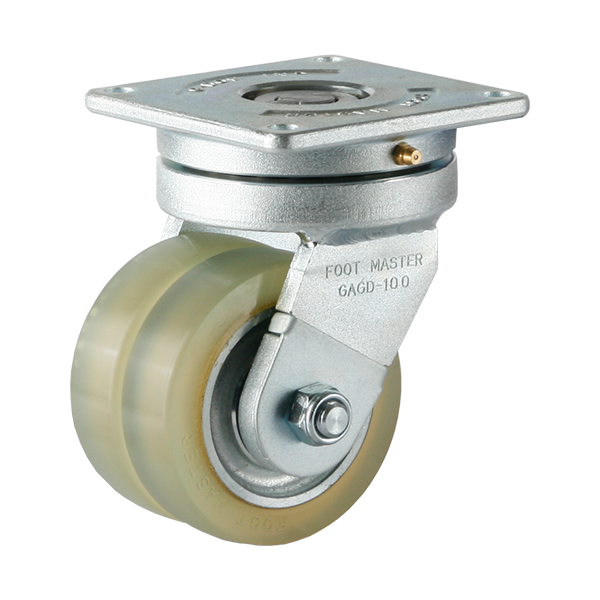

FOOT MASTER®AGV Caster GAGD
  • AGVs with high loads are difficult to change directions. When the AGV turns, it will turn around the wheels.
  • Therefore, when turning, the AGV casters will shake due to the size of the eccentricity. The higher the load, the more obvious the shaking phenomenon, so the AGV will deviate from the normal driving path. The GAGD series can withstand high loads. In order to prevent the AGV from suddenly stopping when turning, an excellent solution with a smaller eccentricity than ordinary casters is provided.
Specification
Dia. 100mm
Wheel Material PU(Shore A95)
Load Capacity 310kg
Surface Treatment Carbon steel/zinc plated
Width 30*2mm
Height 150mm
Eccentricity 30mm
Size of Plate 112*112mm
Plate Hole Centers 92*92mm
Plate Hole 9mm
Temperature -10~+90℃
FOOT MASTER®AGV Caster GAGD
