FOOT MASTER®
GF-125-ASF-MUD

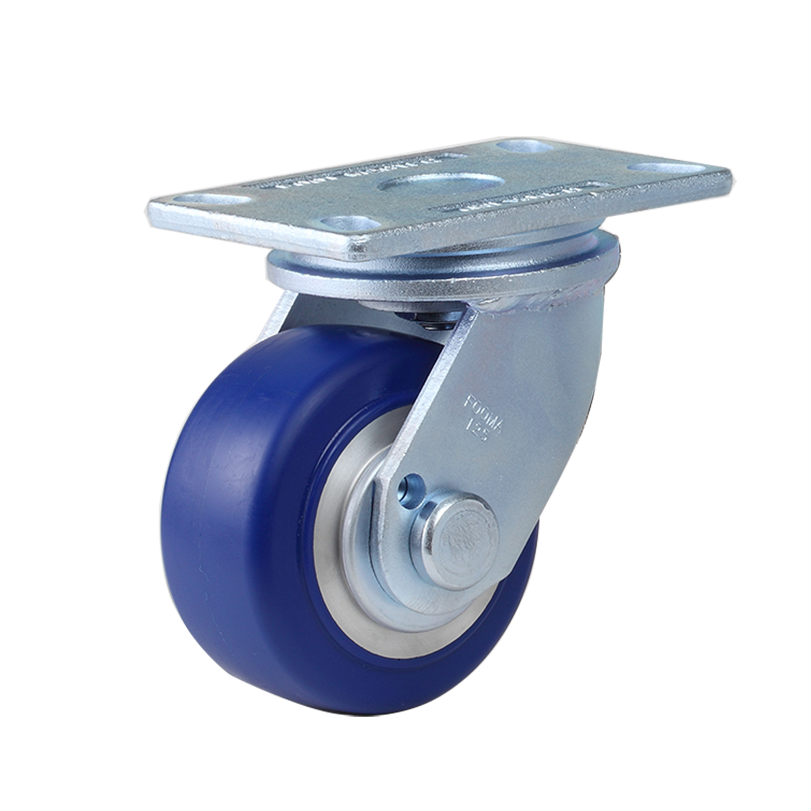

FOOT MASTER® Extra-Heavy Duty Caster GF
- Cast iron bracket with PU or MC Nylon tread
- 4~10 inch
- Capacity: 650~1300 kg
- Could be used in aerospace industry, AGV robot, and car plant assembly.
Specification
| Dia. | 125mm |
| Wheel Material | PU(Shore A95) |
| Load Capacity | 750kg |
| Swivel with brake Item No. | GF-125-BSF-MUD |
| Rigid Item No. | GF-125-ARF-MUD |
| Rigid with brake Item No. | GF-125-BRF-MUD |
| Surface Treatment | Carbon steel/zinc plated |
| Width | 64mm |
| Height | 167mm |
| Eccentricity | 44mm |
| Size of Plate | 159*114mm |
| Plate Hole Centers | 130*74mm |
| Plate Hole | 13mm |
| Temperature | -10~+90℃ |
