Caster

UGXT-250-ASF-HUQ

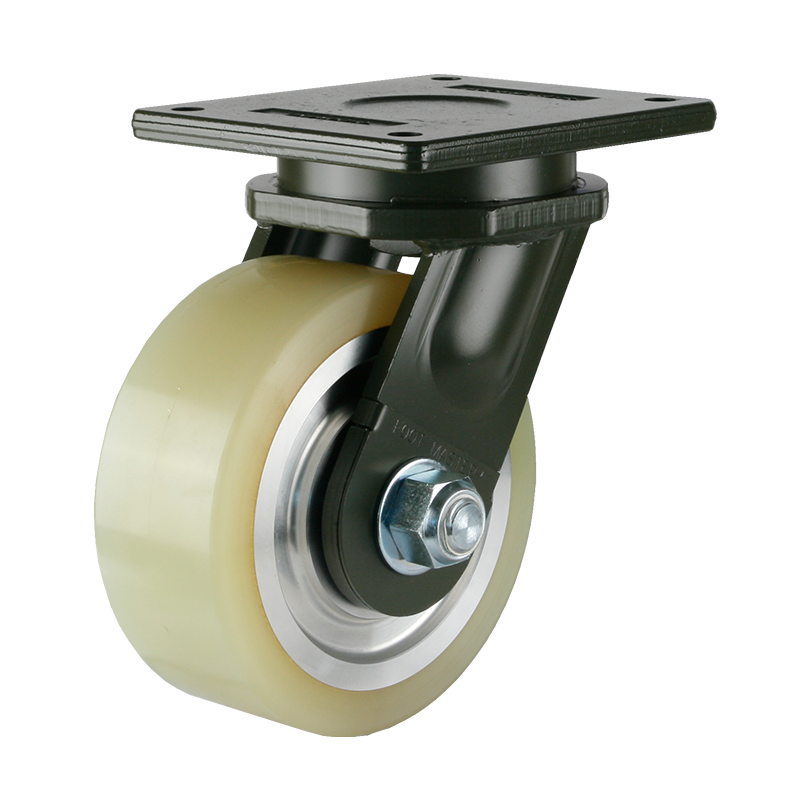

FOOT MASTER® Extra-Heavy Duty Caster UGXT

  • Cast iron bracket with PU or MC Nylon tread
  • 8~12 inch
  • Capacity: 2500~8000 kg
  • Could be used in aerospace industry, AGV robot, and car plant assembly.
Specification
Dia.*Width 250mm
Wheel/Housing Material PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity 2900kg
Size of Plate 255*215mm
Bolt Hold Spacing 210*160mm
Mounting Bolt Dia. 18mm
Height 330mm
Rotation Radius 205mm
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Related Products
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-200-ASF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：200mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：2500kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-200-BSF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：200mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：2500kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-200-ARF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：200mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：2500kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-250-BSF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：250mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：2900kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-250-ARF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：250mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：2900kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-300-ASF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：300mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：3300kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-300-BSF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：300mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：3300kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-300-ARF-HUQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：300mm
Wheel/Housing Material：PU(Shore A95) (Powder Coating/zinc plated)
Load Capacity：3300kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-200-ASF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：200mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：6000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-200-BSF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：200mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：6000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-200-ARF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：200mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：6000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-250-ASF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：250mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：7000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-250-BSF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：250mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：7000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-250-ARF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：250mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：7000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-300-ASF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：300mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：8000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-300-BSF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：300mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：8000kg
FOOT MASTER® Extra-Heavy Duty Caster UGXT
READ MORE
UGXT-300-ARF-MCQ
FOOT MASTER® Extra-Heavy Duty Caster UGXT
Dia.*Width：300mm
Wheel/Housing Material：MC Nylon(Shore D80) (Powder Coating/zinc plated)
Load Capacity：8000kg
