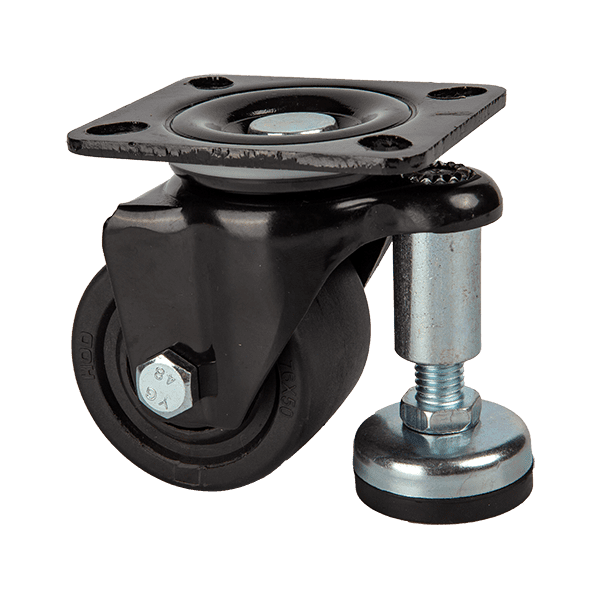

Leveling Caster

3A1APS

Leveling Caster
  • 2.5~3 inch
  • Capacity: 200~500 kg
  • Lifting Distance: 8~10mm
  • RoHS Compliant
  • Suitable for High Loads. Could be used in carrying industrial system enclosure, automation equipment and precision equipment.
Specification
Dia.*Width 75(3”)*45mm
Wheel/Housing Material Black Nylon (ED Coating(Black))
Load Capacity 250kg
Size of Plate 95*66.5mm
Bolt Hold Spacing 74.5*45mm
Mounting Bolt Dia. 8.5mm
Height 98mm
Rotation Radius 64mm
Bearing Type 6202*2
Leveling Caster
