Caster

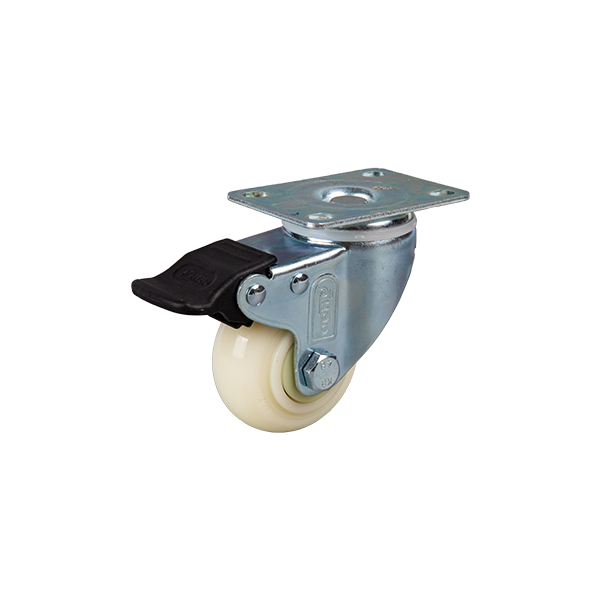

25NYH42B
Light Duty Caster 42

  • 2~3 inch
  • Load Capacity: 50~80 kg
  • RoHS Compliant
  • Suitable for electronic equipment trolleys, automation equipment, precision testing instruments and equipment, food machinery and equipment
Specification
Dia.*Width 63(2.5”)*28mm
Wheel/Housing Material White Nylon (Zinc Plated SS41)
Load Capacity 80kg
Size of Plate 80*58mm
Bolt Hold Spacing 60.5*40mm
Mounting Bolt Dia. 8.2mm
Height 92mm
Rotation Radius 93mm
Bearing Type 6001ZZ*2
Light Duty Caster 42
Related Products
Light Duty Caster 42
READ MORE
2NYH42A
Light Duty Caster 42
Dia.*Width：50(2”)*26mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：60kg
Light Duty Caster 42
READ MORE
2NYH42B
Light Duty Caster 42
Dia.*Width：50(2”)*26mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：60kg
Light Duty Caster 42
READ MORE
2NYH42C
Light Duty Caster 42
Dia.*Width：50(2”)*26mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：60kg
Light Duty Caster 42
READ MORE
25NYH42A
Light Duty Caster 42
Dia.*Width：63(2.5”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：80kg
Light Duty Caster 42
READ MORE
25NYH42C
Light Duty Caster 42
Dia.*Width：63(2.5”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：80kg
Light Duty Caster 42
READ MORE
3NYH42A
Light Duty Caster 42
Dia.*Width：75(3”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：80kg
Light Duty Caster 42
READ MORE
3NYH42B
Light Duty Caster 42
Dia.*Width：75(3”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：80kg
Light Duty Caster 42
READ MORE
3NYH42C
Light Duty Caster 42
Dia.*Width：75(3”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：80kg
Light Duty Caster 42
READ MORE
2NYH4210A
Light Duty Caster 42
Dia.*Width：50(2”)*25mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：50kg
Light Duty Caster 42
READ MORE
2NYH4210B
Light Duty Caster 42
Dia.*Width：50(2”)*25mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：50kg
Light Duty Caster 42
READ MORE
25NYH4212A
Light Duty Caster 42
Dia.*Width：63(2.5”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：70kg
Light Duty Caster 42
READ MORE
25NYH4212B
Light Duty Caster 42
Dia.*Width：63(2.5”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：70kg
Light Duty Caster 42
READ MORE
3NYH4212A
Light Duty Caster 42
Dia.*Width：75(3”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：70kg
Light Duty Caster 42
READ MORE
3NYH4212B
Light Duty Caster 42
Dia.*Width：75(3”)*28mm
Wheel/Housing Material：White Nylon (Zinc Plated SS41)
Load Capacity：70kg
Back to list
