Leveling Caster

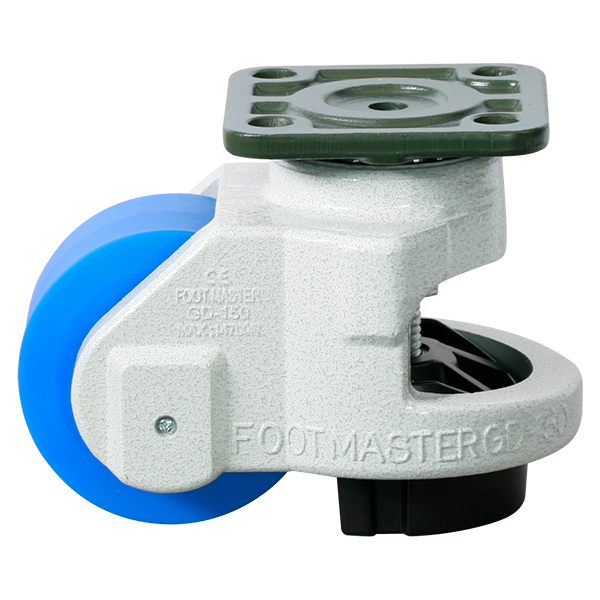

GD-150-F-MCN
FOOT MASTER®Leveling Caster GDN/GD

  • A combination of a leveling feet and caster.
  • Save operation time and improve work efficiency
  • Rubber leveling foot pad may absorb vibration.
Specification
Dia.*Width 90*55mm
Wheel/Housing Material MC Nylon (Powder Coating/Zinc Plated SS41)
Load Capacity 1500kg
Size of Plate 100*100mm
Bolt Hold Spacing 70*70mm
Mounting Bolt Dia. 13mm
Height 132+15mm
Rotation Radius 114mm
FOOT MASTER®Leveling Caster GDN/GD
Related Products
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-40-F-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：42*20mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：50kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-60-F-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：50*25mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：250kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-80-F-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：63*28mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：500kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-100-F-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：75*30mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：750kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GD-120-F-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：75*30mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：1000kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-40-S-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：42*20mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：50kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-60-S-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：50*25mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：250kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-80-S-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：63*28mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：500kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GDN-100-S-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：75*30mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：750kg
FOOT MASTER®Leveling Caster GDN/GD
READ MORE
GD-120-S-NYN
FOOT MASTER®Leveling Caster GDN/GD
Dia.*Width：75*30mm
Wheel/Housing Material：Nylon66 (Powder Coating/Zinc Plated SS41)
Load Capacity：1000kg
