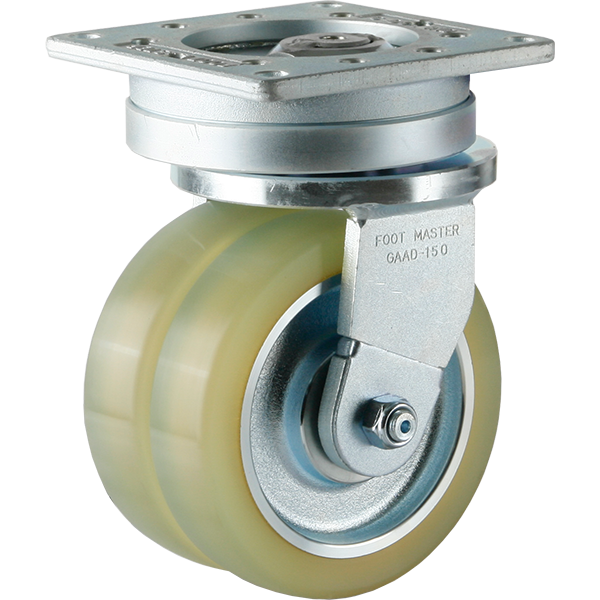

GAAD-150-ASF-HUD
Heavy Duty AGV/AMR Caster (Dual Swivel)
- The AGV driven wheel of the GAAD series uses two rotation axes with different rotation radii during forward and reverse operation. The rotation axis will be automatically adjusted according to the moving direction to achieve a structure that adjusts to the minimum rotation radius.
- The running stability of the AGV is greatly affected by the eccentricity of the casters. If the eccentricity is too large, the AGV will shake too much, causing it to deviate from the prescribed travel route; if the eccentricity is too small, the AGV's motor will be overloaded.
- For AGVs that need to move forward and backward, the GAAD series is the most suitable solution.
Specification
| Diameter | 150mm |
| Material | PU(Shore A95) |
| Load Capacity | 630kg |
| Width | 40*2mm |
| Height | 220mm |
| Eccentricity | 15~33mm |
| Plate Size | 145*145mm |
| Plate Hole Distance | 120*120mm |
| Plate Hole Size | 11mm |
