AGV Casters / AMR Casters

GAGD-125-ASF-HUD

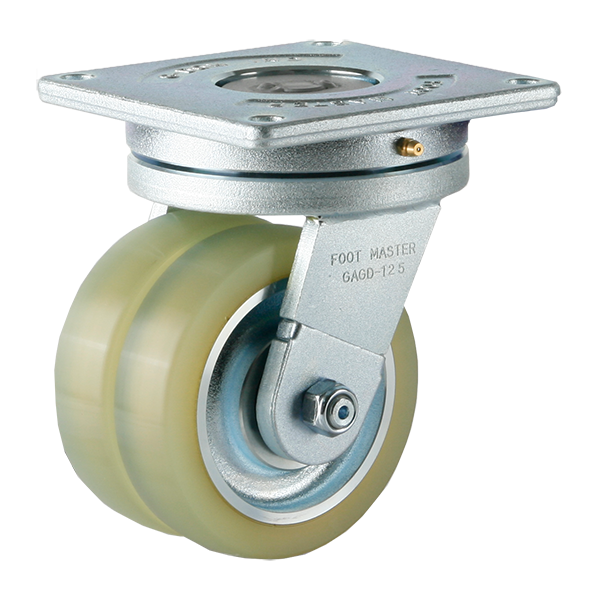

Heavy Duty AGV/AMR Caster (Offset Optimization)
  • AGVs with high loads are difficult to change directions. When the AGV turns, it will turn around the wheels.
  • Therefore, when turning, the AGV casters will shake due to the size of the eccentricity. The higher the load, the more obvious the shaking phenomenon, so the AGV will deviate from the normal driving path. The GAGD series can withstand high loads. In order to prevent the AGV from suddenly stopping when turning, an excellent solution with a smaller eccentricity than ordinary casters is provided.
Specification
Diameter 125mm
Material PU(Shore A95)
Load Capacity 440kg
Width 35*2mm
Height 175mm
Eccentricity 33mm
Plate Size 145*145mm
Plate Hole Distance 120*120mm
Plate Hole Size 11mm
Heavy Duty AGV/AMR Caster (Offset Optimization)
